We sell 'Grade A' panels only


Solar panels & accessories

275W 24V (Poly) Perlight

320W 24V (Mono) Canadian Solar

310W 24V (Mono) Canadian Solar


Our grade 'A' poly photo-voltaic panels are far superior in quality, efficiency and appearance. They are manufactured with first world specifications and covered by 25 years manufacturer's warranty.

SALE PRICE!

$17,000  JMD

310W 24V (Mono) Canadian Solar

320W 24V (Mono) Canadian Solar

310W 24V (Mono) Canadian Solar


Our 310W 'Canadian Solar' grade 'A' mono photo-voltaic panels are far superior in quality, efficiency and appearance. They are manufactured with first world specifications and covered by 25 years manufacturer's warranty.

SALE PRICE!

$18,500 JMD

320W 24V (Mono) Canadian Solar

320W 24V (Mono) Canadian Solar

320W 24V (Mono) Canadian Solar




Our 320W 'Canadian Solar' grade 'A' mono photo-voltaic panels are far superior in quality, efficiency and appearance. They are manufactured with first world specifications and covered by 25 years manufacturer's warranty.

SALE PRICE!

$19,500 JMD

MC-4 Connector (pair)

MC-4 multi-Branch connector

320W 24V (Mono) Canadian Solar


Install like a Pro! This male/female plug allows you to make quick and easy connection of your solar panels without having to splice any wires.

SALE PRICE!

$550 JMD

MC-4 multi-Branch connector

MC-4 multi-Branch connector

MC-4 multi-Branch connector




This MC-4 splitter allows you to make a parallel connection without breaking a sweat. Just plug and play.

SALE PRICE!

$1995 JMD

Aluminium PV Rails Kit

MC-4 multi-Branch connector

MC-4 multi-Branch connector


Install like a pro! Each kit mounts two 250W-300W solar panels. This universal aluminium frame mounts to most roof surfaces including flat concrete decking surfaces and the kit includes all the necessary parts and accessories.

SALE PRICE!

$12,995 JMD

easy connection

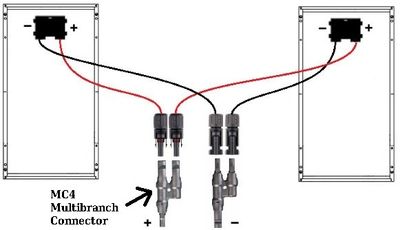

Using the Multi-branch Connector

Multi-branch connectors make it easy to do a parallel connection which comes in especially handy whenever wiring a PWM charge controller. PWM charge controllers such as the C-40 & C-60 are more efficient when the solar panels are wired close to the nominal voltage in a parallel configuration  to achieve charging through increased amperage.

series vs parallel configuration

Series Circuit

Series-Parallel Circuit

Parallel Circuit


  In a series circuit, the current through each of the components is the same, and the voltage across the circuit is the sum of the voltages across each component. In a series circuit the voltage increases while the amperage stays the same. The same current flows through each part of a series circuit. The total resistance of a series circuit is equal to the sum of individual resistances.

Parallel Circuit

Series-Parallel Circuit

Parallel Circuit


  In a parallel circuit, the voltage across each of the components is the same, and the total current is the sum of the currents through each component.  In a parallel circuit the voltage stays the same while the amperage increases. A parallel circuit has two or more paths for current to flow through. Voltage is the same across each component of the parallel circuit. The sum of the currents through each path is equal to the total current that flows from the source.

Series-Parallel Circuit

Series-Parallel Circuit

Series-Parallel Circuit


A series-parallel circuit is a combination of the two different types of circuit configurations. The rules of series and parallel circuits must be applied selectively to circuits containing both types of interconnections. If we are able to identify which parts of the circuit are series and which parts are parallel, we can analyze it in stages, approaching each part one at a time, using the appropriate rules to determine the relationships of voltage, current, and resistance.

Solar Water Heaters

Solar Water Heaters

Series-Parallel Circuit


Solar water heaters use the heat from sun to heat water in the collectors and store the hot water in a thermal tank for later use.

Photovoltaic Module

Solar Water Heaters

Photovoltaic Module


Photovoltaics popularly known as solar panels converts the ultra-violet light from the sun to raw Direct Current. This DC power can be utilized as a charging source for batteries or converted to AC power for more widespread applications.

NO MORE LIGHT BILL!

Solar Water Heaters

Photovoltaic Module


Go solar today and save nuff nuff money!!!

call in the solar specialist

No project too BIG!

Our team of qualified engineers can handle even the most challenging tasks.

65KW of Solar Energy

We have a long track record of providing our customers with only the highest quality installations and after sales services.

4.5kw off-grid solar in st. thomas
